Scroll Progress Circle · Scroll · Plain HTML, CSS & JS · Live preview

CategoryScroll Effects
TagsSVGScroll AnimationLoading States

Copy & paste

Source Code

<div class="spc-reader" id="spcReader">
  <article class="spc-article">
    <h1>The Quiet Hour</h1>
    <p>Scroll this panel to fill the circular progress ring in the corner. The percentage in the centre tracks how far through the article you are.</p>
    <p>A circular reading indicator gives the same feedback as a top progress bar but in a compact, fixed badge that doubles as a back-to-top button once you reach the end.</p>
    <p>Each paragraph adds height so there is something to scroll. The ring is driven by the scroll position of this panel, not the whole window, so it works inside any container.</p>
    <p>Long-form pages use this pattern to reassure readers that the end is in sight, nudging them to keep going rather than bounce away mid-article.</p>
    <p>The stroke you see sweeping clockwise is a single SVG circle whose dash offset is recalculated on every scroll frame.</p>
    <p>When the ring completes, it turns green and a small arrow appears — click it to jump back to the top in one smooth motion.</p>
    <p>Keep scrolling. The maths divides how far you have scrolled by the total scrollable distance, clamped between zero and one.</p>
    <p>That ratio maps onto the circle's circumference to set exactly how much of the stroke is drawn.</p>
    <p>You are nearly there. Notice the number climbing toward one hundred percent as the stroke closes the loop.</p>
    <p>And that's the end — the ring is full, glowing, and ready to send you back to the start.</p>
  </article>
  <button type="button" class="spc-ring" id="spcRing" aria-label="Reading progress">
    <svg viewBox="0 0 48 48">
      <circle class="spc-bg" cx="24" cy="24" r="20"></circle>
      <circle class="spc-fg" id="spcFg" cx="24" cy="24" r="20"></circle>
    </svg>
    <span class="spc-pct" id="spcPct">0%</span>
    <svg class="spc-arrow" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="3" stroke-linecap="round" stroke-linejoin="round"><polyline points="6 14 12 8 18 14"></polyline></svg>
  </button>
</div>

Extend with AI

Take This Snippet Further With AI

The AI prompt for this one is for Patreon supporters ($3 a month, 7 days free), along with a site with no ads. Supporters enter the passcode once and it is remembered in this browser.

· Become a supporter

What's included

Features

SVG dash ring
One circle with stroke-dasharray fills by scroll fraction.
Starts at top
A -90° rotation begins the fill at twelve o'clock.
Container-scoped
Reads a panel's scroll metrics, works in modals or sidebars.
Clamped ratio
0–1 clamp prevents overscroll from breaking the ring.
rAF throttling
One DOM write per frame for smooth, cheap updates.
Completion state
Green glow and percentage fade at 100%.
Back-to-top
Becomes a smooth-scroll button only when complete.
No dependency
Pure HTML/CSS/JS — no scroll or animation library.

About this UI Snippet

Scroll Progress Circle — SVG Reading Progress Ring

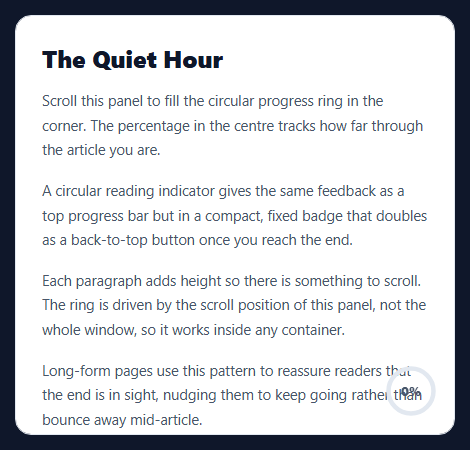

Screenshot of the Scroll Progress Circle snippet rendered live

A scroll progress circle is a compact, fixed ring that fills clockwise as a reader moves through an article — the circular cousin of the thin top progress bar, popular on blogs and long-form pages because it doubles as a back-to-top button when complete. This snippet builds one in HTML, CSS, and vanilla JavaScript using a single SVG circle and the stroke-dasharray technique, scoped to a scrollable panel rather than the whole window. No dependency.

The stroke-dasharray ring

Two concentric <circle>s share a radius: a grey track and a colored foreground. The foreground's stroke-dasharray is set to its full circumference (2πr ≈ 125.66 for r=20), and the stroke-dashoffset starts at that same value so none of the stroke shows. Reducing the offset toward zero reveals the stroke proportionally — set offset = circumference × (1 - ratio) and the ring fills exactly to the scroll fraction. The SVG is rotated -90° so the fill begins at the top, not at three o'clock.

Progress from scroll geometry

The fraction is scrollTop / (scrollHeight - clientHeight) — how far you've scrolled divided by the total scrollable distance — clamped to 0–1 so overscroll bounce can't push it past full or below empty. Because it reads the *panel's* metrics, not the document's, the same code works for a sidebar, a modal, or a full-page reader without changes.

rAF-throttled scroll handling

Scroll events fire rapidly, so the handler is throttled with a ticking flag and requestAnimationFrame: it does the DOM writes at most once per frame and ignores intermediate events. That keeps the ring smooth and avoids layout thrash even during fast flicks on a trackpad or touch screen.

Completion state and back-to-top

When the ratio hits ~100% a .done class turns the stroke green with a glow, fades out the percentage, and reveals an up-arrow — and only then does the ring become clickable, scrolling the panel back to the top with scrollTo({ behavior: 'smooth' }). Gating the click on completion means it can't be triggered accidentally mid-read.

Reusing it on a real page

Point the listener at window and read document.documentElement metrics to track the whole page instead of a panel. The ring element is position: sticky here so it stays visible while scrolling its container; switch to fixed for a page-level badge. Everything else — the dash math, the throttle, the completion logic — stays identical.

Step by step

How to Use

  1. 1
    Paste HTML, CSS, and JSA scrollable reader panel renders with a progress ring in the corner.
  2. 2
    Scroll the panelThe ring's stroke sweeps clockwise and the center percentage climbs.
  3. 3
    Watch the geometryProgress equals scrollTop divided by the total scrollable distance.
  4. 4
    Reach the endThe ring turns green, glows, and shows an up-arrow.
  5. 5
    Click to returnOnce complete, clicking smooth-scrolls back to the top.
  6. 6
    Track the whole pagePoint the listener at window for a page-level badge.

Real-world uses

Common Use Cases

Article reading progress
Show how far through an article the reader is, as a compact circular alternative to a thin top bar, with the percentage displayed in the centre.
Long-form blog posts
Reassure readers on an article card layout, with an SVG ring beginning at twelve o'clock through a minus 90 degree rotation.
Documentation guides
Track position beside a table of contents, scoped to a container so it also works inside modals or sidebars.
Back-to-top replacement
Replace a plain scroll to top button with a ring that becomes the control when the reader reaches the end.
Ring progress maths reference
Reuse the dash maths from an SVG progress ring, with a 0 to 1 clamp preventing overscroll from breaking the arc.
Related: Scroll Testimonial Sequence
See the Scroll Testimonial Sequence for a related scroll pattern worth pairing with this one.

Got questions?

Frequently Asked Questions

The foreground circle's stroke-dasharray is set to its full circumference and its stroke-dashoffset starts at that same value, hiding the stroke. Setting offset = circumference × (1 - ratio) reveals exactly the scrolled fraction of the stroke. The SVG is rotated -90° so the fill starts at the top of the ring.

It is scrollTop divided by (scrollHeight - clientHeight) — distance scrolled over total scrollable distance — clamped between 0 and 1 so overscroll bounce can't exceed full or drop below empty. It reads the panel's own metrics, so the same logic works in a modal, sidebar, or any scroll container.

Scroll events fire many times per frame, and updating the DOM on each one causes jank. A ticking flag plus requestAnimationFrame coalesces them so the offset and percentage are written at most once per frame, keeping the ring smooth during fast scrolling without wasted layout work.

When the ratio reaches about 100%, a .done class turns the stroke green, fades the percentage, and shows an up-arrow. The click handler only scrolls to the top when that class is present, using scrollTo with smooth behavior — so the button can't be triggered before you've finished reading.

Keep a ref to the scroll container, attach the scroll listener in a mount effect (useEffect, onMounted, ngAfterViewInit), and clean it up on unmount. Store the ratio in state and bind strokeDashoffset to circumference × (1 - ratio). For a whole-page version, listen on window and read document.documentElement metrics. Tailwind handles the layout; bind the dash offset inline.
