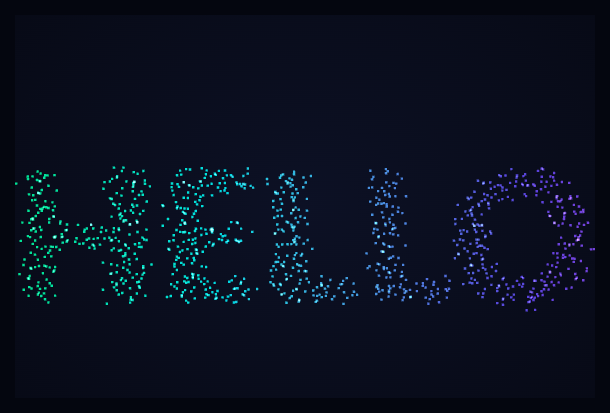

Three.js Scroll Text Particles — GSAP Word Formation Effect

<section class="txg-top"><p>Scroll ↓ to form the word</p></section>
<section class="txg-stage" id="txgStage">
  <canvas id="txgCanvas"></canvas>
</section>
<section class="txg-bottom"><p>Every particle knew its letter.</p></section>

*{box-sizing:border-box;margin:0;padding:0}
html,body{background:#04060e;color:#fff;font-family:system-ui,-apple-system,sans-serif}
.txg-top,.txg-bottom{min-height:70vh;display:flex;justify-content:center;align-items:center;color:#6f7aa0;font-size:15px;letter-spacing:.08em;text-transform:uppercase}
.txg-stage{height:100vh;position:relative;overflow:hidden;background:radial-gradient(60% 60% at 50% 45%,#0c1226,#04060e)}
#txgCanvas{display:block;width:100%;height:100%}

const canvas = document.getElementById('txgCanvas');
const renderer = new THREE.WebGLRenderer({ canvas, antialias: true, alpha: true });
renderer.setPixelRatio(Math.min(window.devicePixelRatio, 2));

const scene = new THREE.Scene();
const camera = new THREE.PerspectiveCamera(55, 1, 0.1, 100);
camera.position.set(0, 0, 13);

// Sample a word drawn to an offscreen 2D canvas: every lit pixel becomes a
// target position for one particle. This turns any text or logo into a
// particle target field with no font loader or 3D text geometry needed.
const WORD = 'HELLO';
const tc = document.createElement('canvas');
tc.width = 360; tc.height = 120;
const ctx = tc.getContext('2d');
ctx.fillStyle = '#fff';
ctx.font = 'bold 96px system-ui, sans-serif';
ctx.textAlign = 'center';
ctx.textBaseline = 'middle';
ctx.fillText(WORD, tc.width / 2, tc.height / 2 + 4);
const img = ctx.getImageData(0, 0, tc.width, tc.height).data;

const targets = [];
const step = 3; // sampling stride — smaller = denser text
for (let y = 0; y < tc.height; y += step) {
  for (let x = 0; x < tc.width; x += step) {
    if (img[(y * tc.width + x) * 4 + 3] > 128) {
      targets.push(
        (x - tc.width / 2) * 0.035,
        -(y - tc.height / 2) * 0.035,
        (Math.random() - 0.5) * 0.4
      );
    }
  }
}
const COUNT = targets.length / 3;

const scattered = new Float32Array(COUNT * 3);
const positions = new Float32Array(COUNT * 3);
const colors = new Float32Array(COUNT * 3);
for (let i = 0; i < COUNT; i++) {
  const i3 = i * 3;
  scattered[i3]     = (Math.random() - 0.5) * 22;
  scattered[i3 + 1] = (Math.random() - 0.5) * 14;
  scattered[i3 + 2] = (Math.random() - 0.5) * 10;
  const c = new THREE.Color().setHSL(0.55 + (targets[i3] * 0.03), 0.8, 0.62);
  colors[i3] = c.r; colors[i3 + 1] = c.g; colors[i3 + 2] = c.b;
}
positions.set(scattered);

const geo = new THREE.BufferGeometry();
geo.setAttribute('position', new THREE.BufferAttribute(positions, 3));
geo.setAttribute('color', new THREE.BufferAttribute(colors, 3));
const points = new THREE.Points(geo, new THREE.PointsMaterial({
  size: 0.08, vertexColors: true, transparent: true, opacity: 0.95,
  blending: THREE.AdditiveBlending, depthWrite: false,
}));
scene.add(points);

gsap.registerPlugin(ScrollTrigger);

const state = { p: 0 };
gsap.to(state, {
  p: 1, ease: 'none',
  scrollTrigger: {
    trigger: '#txgStage', start: 'top top', end: '+=380%', scrub: 0.5, pin: true,
  },
});

const posAttr = geo.getAttribute('position');
function resize() {
  const w = canvas.clientWidth, h = canvas.clientHeight;
  renderer.setSize(w, h, false);
  camera.aspect = w / h;
  camera.updateProjectionMatrix();
}

function animate() {
  requestAnimationFrame(animate);
  const p = state.p * state.p * (3 - 2 * state.p);
  const arr = posAttr.array;
  for (let i = 0; i < COUNT; i++) {
    const i3 = i * 3;
    arr[i3]     = scattered[i3]     + (targets[i3]     - scattered[i3])     * p;
    arr[i3 + 1] = scattered[i3 + 1] + (targets[i3 + 1] - scattered[i3 + 1]) * p;
    arr[i3 + 2] = scattered[i3 + 2] + (targets[i3 + 2] - scattered[i3 + 2]) * p;
  }
  posAttr.needsUpdate = true;
  // A gentle sway once formed, so the word floats rather than sits rigid.
  points.rotation.y = Math.sin(performance.now() * 0.0004) * 0.12 * p;
  renderer.render(scene, camera);
}

resize();
window.addEventListener('resize', resize);
animate();
