Motion One Spring Card Expand — FLIP Detail View

Motion One Spring Card Expand · Cards · Plain HTML, CSS & JS · Live preview

CategoryCards
TagsKeyboard NavigationGlassmorphismAccessibilityCSS GridJS Libraries

Copy & paste

Source Code

Requires
JS · motion.min.js
<div class="mfe-page">
  <div class="mfe-head">
    <span class="mfe-tag">motion one · spring</span>
    <h2>Field Notes</h2>
    <p>Click a card — it grows into the full story on a spring, then springs back.</p>
  </div>

  <div class="mfe-grid" id="mfeGrid">
    <article class="mfe-card" tabindex="0">
      <div class="mfe-thumb t1"></div>
      <div class="mfe-body">
        <span class="mfe-kicker">Iceland</span>
        <h3>Chasing the blue hour</h3>
        <p class="mfe-more">Nine days along the south coast waiting for the twenty minutes each evening when the light goes the color of a gas flame. Most of it was spent in the car with the heater on, watching cloud cover refuse to break.</p>
      </div>
    </article>

    <article class="mfe-card" tabindex="0">
      <div class="mfe-thumb t2"></div>
      <div class="mfe-body">
        <span class="mfe-kicker">Kyoto</span>
        <h3>Sixty-four shades of moss</h3>
        <p class="mfe-more">The temple gardens are maintained with tweezers. A gardener explained that the moss is weeded strand by strand, and that the work is never finished because it is not supposed to be.</p>
      </div>
    </article>

    <article class="mfe-card" tabindex="0">
      <div class="mfe-thumb t3"></div>
      <div class="mfe-body">
        <span class="mfe-kicker">Atacama</span>
        <h3>The driest place with a sky</h3>
        <p class="mfe-more">No humidity, no light pollution, and 2,400 metres of altitude. The Milky Way casts a shadow here, which sounds like an exaggeration until you hold your hand over a sheet of paper and see it.</p>
      </div>
    </article>

    <article class="mfe-card" tabindex="0">
      <div class="mfe-thumb t4"></div>
      <div class="mfe-body">
        <span class="mfe-kicker">Lofoten</span>
        <h3>Fishing villages in February</h3>
        <p class="mfe-more">Four hours of usable daylight and a wind that comes off the water sideways. Every red cabin you have seen in a photograph is a rorbu, and most of them are still working buildings rather than rentals.</p>
      </div>
    </article>
  </div>

  <div class="mfe-backdrop" id="mfeBackdrop"></div>
  <button class="mfe-close" id="mfeClose" aria-label="Close">&times;</button>
</div>

Extend with AI

Take This Snippet Further With AI

The AI prompt for this one is for Patreon supporters ($3 a month), along with a site with no ads. Supporters enter the passcode once and it is remembered in this browser.

· Become a supporter

What's included

Features

Real spring physics
Motion One spring() with stiffness, damping, and mass — no duration.
FLIP measurement
getBoundingClientRect captured before the card leaves flow.
Placeholder holds the slot
The grid never reflows, and close targets the live placeholder rect.
Resize-safe return
Close reads the placeholder position at close time, not a cached rect.
No text distortion
Layout properties animate instead of scale, so type stays crisp.
Choreographed stagger
Backdrop, close button, and body copy fade in on offset delays.
Promise-based teardown
anim.finished waits for the spring to settle before resetting styles.
Three ways to close
Escape key, backdrop click, and button all share one close path.

About this UI Snippet

Motion One Spring Card Expand — Shared-Element Transition Without a Framework

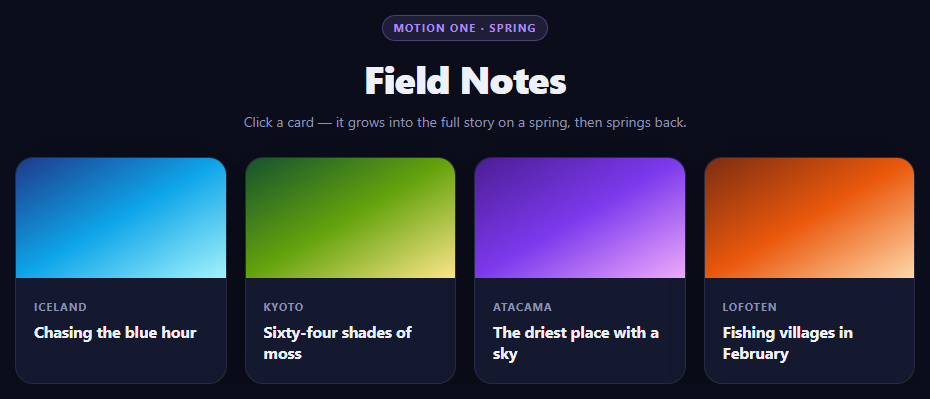

Screenshot of the Motion One Spring Card Expand snippet rendered live

The "card grows into a detail view" transition is the single most recognizable interaction in modern app design — it is how iOS opens an App Store listing and how Framer Motion's layoutId made its name. It is also the one most people give up on outside React, because doing it properly means measuring live geometry and animating between two layouts that never exist at the same time.

This snippet does it in plain JavaScript with Motion One, a ~4kb library that drives the native Web Animations API and — critically for this effect — ships a real spring() easing function.

Why a spring, not a cubic-bezier

A card growing to five times its size on ease-out looks like a video being scrubbed. It arrives at its destination and stops dead. A spring settles:

spring({ stiffness: 210, damping: 24, mass: 1 })

Those three numbers describe a physical system rather than a curve. stiffness is how hard the spring pulls toward the target, damping is how much energy is bled off each oscillation, and mass is inertia. At damping 24 against stiffness 210 the card overshoots its final size by a hair and settles back — the tiny bit of overshoot is what the eye reads as *weight*. Notably, spring animations have no duration: the physics decides when it is finished, which is why the open and close feel consistent even though they cover different distances.

The placeholder problem

The moment the card becomes position: fixed so it can escape the grid, its slot in the grid vanishes and every sibling card jumps left to fill the gap. That reflow is jarring, and it also breaks the close animation, because the geometry you want to return to no longer exists.

The fix is four lines:

placeholder = document.createElement('div'); placeholder.style.width = first.width + 'px'; ...

An empty div of exactly the card's measured size is inserted into the grid before the card is lifted out of flow. The grid never notices the card left. On close, the placeholder's getBoundingClientRect() is what the animation targets — so the card flies back to wherever its slot ended up, even if the window was resized or the layout reflowed while the detail view was open. That is the detail most implementations miss: they cache the original rect at open time, and a mid-transition resize sends the card back to the wrong place.

Measuring first, animating second

open() follows the FLIP discipline. first = card.getBoundingClientRect() captures the card's real position before anything changes. Those values are immediately written back as explicit top, left, width, and height on the fixed element, so visually nothing moves at the instant the card leaves flow — the user sees no jump. Only then does the animation run from those literal values to the target rect.

targetRect() computes the destination from the viewport rather than hard-coding it: Math.min(560, window.innerWidth - 40) keeps the panel comfortable on desktop and inset on a phone, and the centering math is derived from the same numbers.

What each animation is for

Four properties animate together on the card (top, left, width, height), and three more run alongside on different elements — the backdrop fades, the close button fades in slightly later at delay: 0.1, and the hidden body copy rises with y: [12, 0] at delay: 0.14. Staggering those by a tenth of a second is what makes the transition feel choreographed rather than simultaneous.

Animating layout properties rather than transform is a deliberate trade here. transform: scale() is cheaper, but non-uniform scaling distorts the text inside the card — the classic squashed-headline artifact — and correcting it requires counter-scaling every child. For a single element, animating width and height keeps the type crisp at every frame, and one element's layout cost is not what will slow a page down.

Closing cleanly

animate() returns an object with a finished promise, which is what lets the teardown wait for the spring to actually settle:

anim.finished.then(function () { card.removeAttribute('style'); ... })

Stripping the entire inline style attribute in one call is cleaner than resetting six properties individually, and it guarantees no stale position: fixed survives into the next open. The placeholder is removed in the same callback, so the grid closes its gap exactly as the card lands in it.

Reusing it

The detail copy already lives inside each card and is simply display: none until .is-open — so there is no second template to keep in sync and no fetch to wait for. Escape, backdrop click, and the close button all route through the same close(). Pair it with an expandable card for the in-flow variant, or a modal when the content has no origin element to grow from.

Step by step

How to Use

  1. 1
    Add the Motion One CDNInclude motion from the CDN panel — it exposes a global Motion object.
  2. 2
    Paste HTML, CSS, and JSA four-card grid renders with hidden detail copy inside each card.
  3. 3
    Click a cardIt lifts out of the grid and springs into a centered detail panel.
  4. 4
    Close itEscape, the backdrop, or the close button all spring the card back to its slot.
  5. 5
    Tune the springRaise stiffness for a snappier open, lower damping for more overshoot.
  6. 6
    Add your contentPut the detail copy in .mfe-more — it reveals as the card expands.

Real-world uses

Common Use Cases

Editorial and photo grids
Open a story in place instead of navigating to a new page, with a placeholder holding the card's slot so the grid never reflows.
Product detail previews
Offer a richer alternative to a product quick view, growing a grid card into a detail panel on real spring physics.
Project tile expansion
Expand a project tile into its full story, with getBoundingClientRect captured before the card leaves the normal flow of the page.
Dashboard widget zoom
Grow a small metric tile into a full panel, with close reading the placeholder position at close time so layout changes in between are respected.
Team profiles and FLIP learning
Expand a card into a bio next to an expandable card variant, and learn measure-then-animate with spring stiffness, damping and mass.

Got questions?

Frequently Asked Questions

A bezier arrives at the target and stops dead, which reads as a scrub rather than a movement. A spring is defined by stiffness, damping, and mass, so it overshoots slightly and settles — that overshoot is what the eye interprets as weight. Springs also have no fixed duration; the physics decides when the motion ends, so opens and closes over different distances stay consistent.

When the card becomes position: fixed it leaves the grid, so its slot would collapse and every sibling would jump. An empty div sized to the card measurement holds that slot. It also gives the close animation a live target — reading the placeholder rect at close time means the card returns correctly even if the window was resized while the panel was open.

Non-uniform scaling distorts the card contents, producing stretched headlines that only look right at the start and end frames. Fixing that requires counter-scaling every child. Animating layout properties on a single element keeps the type crisp throughout, and one element reflowing is not what makes a page slow.

That is the FLIP discipline. The rect is captured before the card leaves flow, then immediately applied as explicit top, left, width, and height on the fixed element. Visually nothing changes at the moment the card is lifted out, so there is no jump — the animation then runs from those literal starting values to the target.

Motion One returns an object with a finished promise. The teardown runs in .then(), after the spring has actually settled, and calls card.removeAttribute("style") to strip every inline property in one go rather than resetting six of them by hand — so no position: fixed can survive into the next open.

Keep the open card id in state and refs to the card elements. Run the measurement and Motion One calls in an effect that fires after the state change commits, since you need post-layout geometry. Await the finished promise before clearing the open state. In React, a portal is unnecessary because the card is position: fixed, but make sure the effect cleanup cancels any in-flight animation on unmount.
