Rough.js Hand-Drawn Bar Chart — Sketchy Canvas Chart Snippet

Rough.js Hand-Drawn Bar Chart · Charts · Plain HTML, CSS & JS · Live preview

CategoryCharts
TagsCanvasData VisualizationJS Libraries

Copy & paste

Source Code

Requires
JS · rough.js
<div class="rhc-stage">
  <div class="rhc-head">
    <span class="rhc-tag">Rough.js · canvas · hachure</span>
    <h2>Quarterly Signups</h2>
    <p>Redrawn from scratch every frame — Rough.js draws are one-shot, so the growth-in animation clears and re-sketches each bar.</p>
  </div>
  <canvas id="rhcCanvas" width="640" height="360"></canvas>
  <div class="rhc-legend" id="rhcLegend"></div>
  <button class="rhc-replay" id="rhcReplay">↻ Replay</button>
</div>

Extend with AI

Take This Snippet Further With AI

The AI prompt for this one is for Patreon supporters ($3 a month), along with a site with no ads. Supporters enter the passcode once and it is remembered in this browser.

· Become a supporter

What's included

Features

Hand-sketched hachure fill
Bars are filled with jittered diagonal line strokes instead of a flat vector color.
Frame-by-frame redraw animation
Because Rough.js draws are one-shot, growing bars means clearing and re-sketching every frame.
Eased growth curve
A cubic ease-out makes the bar-growth animation decelerate naturally instead of ending abruptly.
Configurable roughness
roughness independently tunes how hand-drawn the bars vs. the axis line appear.
Value and label annotations
Real canvas text renders on top of the sketchy bars for exact values and axis labels.
Replay control
A button re-triggers the full growth-in animation from zero on demand.
Data-driven rendering
Bar count, height, color, and label all derive from one plain JS array.
Whiteboard aesthetic
A light paper background and bold border complete the hand-drawn presentation feel.

About this UI Snippet

Rough.js Hand-Drawn Bar Chart — Animating a One-Shot Drawing Library

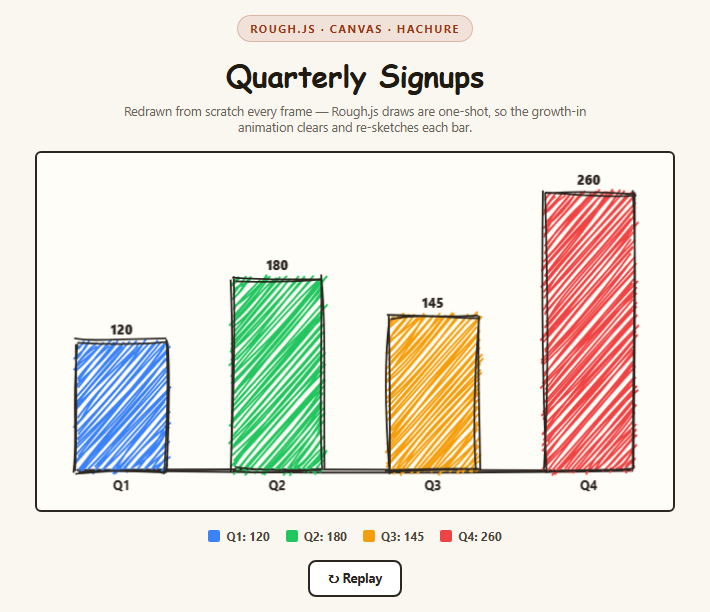

Screenshot of the Rough.js Hand-Drawn Bar Chart snippet rendered live

Most charting is either DOM-based (SVG rectangles you can resize with a CSS transition) or canvas-based with your own persistent drawing state. Rough.js is neither. It's a one-shot procedural sketch renderer: every call to rc.rectangle() or rc.line() immediately draws hand-jittered strokes onto the canvas and then forgets everything about that shape. There's no retained rectangle object you can later ask to "grow taller" — the moment you want the bar at a different height, you have to draw an entirely new sketch from scratch.

Why that forces a clear-and-redraw animation loop

js function drawFrame(progress) { ctx.clearRect(0, 0, W, H); // ...draw axis and all bars scaled to progress... }

Because Rough.js has nothing to transition, animating "bars growing in" means running a normal requestAnimationFrame loop where every single frame clears the whole canvas and re-sketches everything from zero, just with each bar's height multiplied by a progress fraction between 0 and 1. This is the opposite of how you'd animate an SVG bar (just tween a height attribute) or a DOM bar (a CSS transition) — there, the shape persists and only one property changes. Here, the *entire drawing* is disposable and regenerated on each tick.

It also means each frame's rectangle looks like an independently hand-drawn sketch — because it genuinely is one. Rough.js re-randomizes its jitter on every draw call unless you pass a fixed seed, so a bar's "hand-drawn" wobble is technically slightly different in every single animation frame, which if anything makes the growth feel more organic rather than a rigid tween.

hachure fill, and why it's not a plain fill color

fillStyle: 'hachure' tells Rough.js to fill the rectangle with a field of roughly parallel diagonal lines (the classic architectural-sketch cross-hatch look) rather than a flat color. hachureGap: 5 controls the spacing between those lines, and fillWeight: 2 controls their stroke thickness. This is fundamentally different from ctx.fillStyle = color; ctx.fillRect(...) — Rough.js is drawing dozens of individual jittered line segments per bar, which is exactly what gives it the whiteboard-marker texture instead of a clean vector fill. fillStyle: 'cross-hatch' (hachure lines in two directions) is available for a denser, scribbled look if you want more visual weight per bar.

roughness as the "how sketchy" knob

roughness: 2 (Rough.js's default is 1) controls how far each line segment's endpoints and midpoints are randomly displaced from the mathematically "correct" position. Higher values look more hand-drawn and unstable; values near 0 approach a clean geometric shape. Turning it up on the bars but keeping the axis line closer to default is a deliberate way to make the data itself feel loosely sketched while the chart's structural framing stays legible.

Reusing it

Feed real data into the data array and the rest is untouched — bar count, colors, and value labels all derive from it. For a static (non-animating) chart, just call drawFrame(1) once instead of running animateIn(). Pair the hachure technique with the sketchy annotation highlight snippet, which uses the same rough.canvas() setup but for marking up real DOM text instead of drawing chart geometry.

Step by step

How to Use

  1. 1
    Add the Rough.js CDNInclude rough.umd.js from the CDN panel — a single script tag exposing the rough global.
  2. 2
    Paste HTML, CSS, and JSA 4-bar canvas chart renders and animates its bars growing in on load.
  3. 3
    Watch the growth-in animationEvery frame clears the canvas and redraws all bars scaled to the current progress fraction.
  4. 4
    Click ReplayRe-runs the same requestAnimationFrame loop from progress 0.
  5. 5
    Swap in real dataEdit the data array — labels, values, and colors — no other code needs to change.
  6. 6
    Try a static chartCall drawFrame(1) once instead of animateIn() if you don't want the growth animation.

Real-world uses

Common Use Cases

Whiteboard-style presentations
Give slides an intentionally informal look, with hachure-filled bars that feel sketched rather than rendered, ideal for workshops and early-stage pitches.
Playful product dashboards
Create a distinctive, memorable chart for a consumer app, using roughness to tune how hand-drawn the bars and the axes feel.
Educational explainers
Present data as if sketched on a whiteboard, so charts read as friendly explanations instead of formal reports.
Wireframe and mockup tools
Prototype interfaces in a sketchy style that signals unfinished work, helping reviewers focus on layout and not on polish.
Teaching canvas animation
Learn why Rough.js draws are one-shot and how bars are grown by clearing and redrawing every frame with a cubic ease-out curve.

Got questions?

Frequently Asked Questions

Rough.js has no retained shape objects — rc.rectangle() immediately draws jittered strokes onto the canvas and returns nothing you can later mutate. There is no "this rectangle, but taller" operation, so animating growth requires calling clearRect() and re-running every draw call each frame with the new height, which is fundamentally different from SVG or DOM animation where the element persists and only one attribute changes.

A normal ctx.fillRect() with a solid fillStyle color paints a flat rectangle. Rough.js's hachure fill instead draws many individual roughly-parallel, jittered line segments across the shape's interior, spaced by hachureGap and stroked at hachureWeight — visually resembling pencil or marker cross-hatching, which is the core of the "hand-drawn" look.

Not meaningfully at chart scale — roughness only adds a small amount of extra math (random displacement calculations) per line segment, and a 4-bar chart involves a handful of segments per frame. It would only become a performance concern with hundreds of shapes redrawn at 60fps, which is well beyond a typical chart.

Rough.js re-randomizes its jitter on every single draw call unless you explicitly pass a fixed seed option. Since the growth animation calls rc.rectangle() fresh on every requestAnimationFrame tick, each frame is technically an independently hand-sketched rectangle, which if anything reinforces the organic, hand-drawn feel rather than looking like a rigid tween.

Pass a fixed seed value in the options object, e.g. { seed: 42 }, and Rough.js will use that seed for its pseudo-random jitter instead of a new random one each call — useful if you want a chart that looks identical on every reload, at the cost of the subtle per-frame variation this snippet relies on for the growth animation.

Yes — cross-hatch draws hachure lines in two intersecting directions instead of one, producing a denser, more scribbled fill. It's a drop-in replacement for the fillStyle value with no other option changes required, and reads as more visually "busy" per bar.
