Three.js Orbit Rings — Draggable WebGL Orbital System

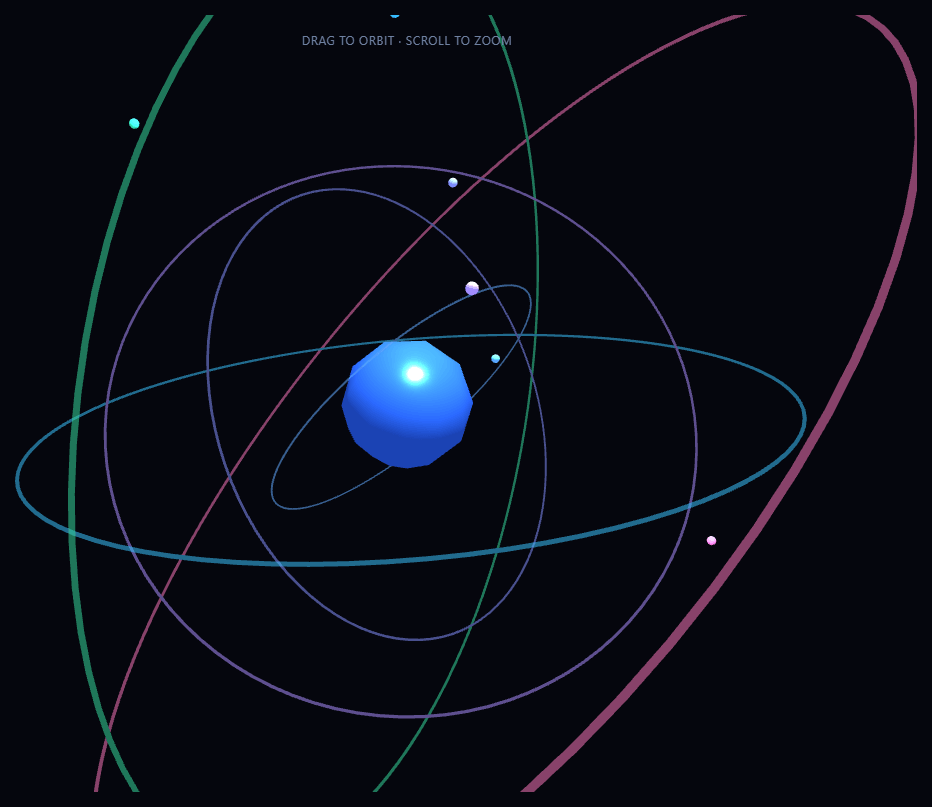

The Three.js Orbit Rings snippet renders six independently tilted, independently spinning wireframe rings around a glowing core — an atom-like or satellite-network visual — and lets the visitor drag to rotate the whole scene and scroll to zoom, using Three.js's OrbitControls addon loaded straight from a CDN alongside the core library.

Grouping tilt and orbit separately

Each ring is wrapped in its own THREE.Group, and the group itself is rotated to a random tilt angle once, at startup. The ring mesh and its traveling bead are added as children of that tilted group. This separation matters: the group's rotation handles the *static* tilt of the whole ring in 3D space, while the bead's position is recalculated every frame purely in the group's own local 2D plane using Math.cos/Math.sin. Because the bead's orbit math never has to account for the tilt directly, adding six differently-tilted rings costs nothing extra in complexity — the parent group's rotation matrix handles that transformation automatically.

A traveling bead gives orbits direction and speed

A static wireframe torus reads as a flat ring, not an orbit. Each ring carries a small glowing sphere whose position is recomputed every frame as (cos(angle) × radius, 0, sin(angle) × radius), where angle combines the shared animation clock with a per-ring speed and phase offset. Six rings orbiting at six different speeds — some fast, some barely moving — is what sells the "orbital system" read rather than "concentric decorative circles."

OrbitControls from a CDN, not a bundler

The scene loads a second script — Three.js's OrbitControls.js addon — directly from jsDelivr after the core three.min.js script, which attaches THREE.OrbitControls onto the global THREE namespace. This is the standard way to add mouse-drag camera control to a plain-script Three.js scene without a bundler: enableDamping makes drags glide to a smooth stop instead of snapping, minDistance/maxDistance bound how far the visitor can zoom in or out, and autoRotate keeps the whole system slowly spinning on its own whenever nobody is actively dragging.

Randomized tilt keeps it from looking engineered

Every ring's tilt is set with Math.random() * Math.PI on two axes at startup, which is what stops the scene from reading like a technical diagram of perfectly stacked, parallel rings. Rerunning the snippet produces a genuinely different arrangement each time, since the randomization happens once when the page loads rather than being hardcoded.

A glowing icosahedron core, not a plain sphere

The center object is a low-subdivision IcosahedronGeometry with an emissive MeshStandardMaterial, giving it faceted, crystalline highlights rather than a smooth, featureless sphere — a small detail that reads as more "energy source" than "billiard ball," reinforcing the orbital-system metaphor the rings are already building.

Where this technique fits

The tilted-group-plus-orbiting-child pattern generalizes well beyond rings: swap the bead for a small planet mesh and you have the beginning of a solar system model, or swap the ring for a path and you have an orbit-camera product viewer. Pair this snippet with a particle network for a two-scene "cosmic" section, or contrast it against the flat, CSS-driven motion of an orbiting icons snippet to show the difference between 2D and true 3D orbital motion.
