Popmotion Spring Toggle Switch — Spring vs Ease Comparison Snippet

Popmotion Spring Toggle Switch · Buttons · Plain HTML, CSS & JS · Live preview

CategoryButtons
TagsForms & ValidationMicro-InteractionsJS Libraries

Copy & paste

Source Code

Requires
JS · popmotion.min.js
<div class="pst-stage">
  <div class="pst-head">
    <span class="pst-tag">Popmotion · spring vs ease</span>
    <h2>Spring Toggle</h2>
    <p>Same distance, two motion models — the spring knob overshoots and settles, the CSS knob just eases in.</p>
  </div>

  <div class="pst-row">
    <div class="pst-block">
      <button class="pst-switch" id="pstSpring" role="switch" aria-checked="false">
        <span class="pst-knob" id="pstSpringKnob"></span>
      </button>
      <span class="pst-caption">Popmotion spring</span>
    </div>
    <div class="pst-block">
      <button class="pst-switch" id="pstCss" role="switch" aria-checked="false">
        <span class="pst-knob pst-knob-css" id="pstCssKnob"></span>
      </button>
      <span class="pst-caption">CSS ease-out</span>
    </div>
  </div>
</div>

Extend with AI

Take This Snippet Further With AI

The AI prompt for this one is for Patreon supporters ($3 a month, 7 days free), along with a site with no ads. Supporters enter the passcode once and it is remembered in this browser.

· Become a supporter

What's included

Features

Side-by-side comparison
Identical 30px travel animated two ways so the difference is directly visible, not just described.
True spring physics
stiffness, damping, and mass drive a numerically integrated mass-spring-damper simulation.
Visible overshoot
Underdamped parameters let the spring knob pass its target and settle back, unlike any CSS curve.
Smooth interruption
Rapid re-toggling restarts the spring from its live position without a visual snap.
Accessible switch markup
role="switch" and aria-checked are kept in sync with both toggle states.
Zero extra dependencies
Only Popmotion is used for the spring side; the comparison side is pure CSS.
Tunable in four numbers
stiffness, damping, mass, and TRAVEL are the only values needed to reshape the motion.
onUpdate-driven transform
The spring writes directly to a CSS transform every frame, no layout properties touched.

About this UI Snippet

Popmotion Spring Toggle Switch — Why Springs Feel Different From Easing

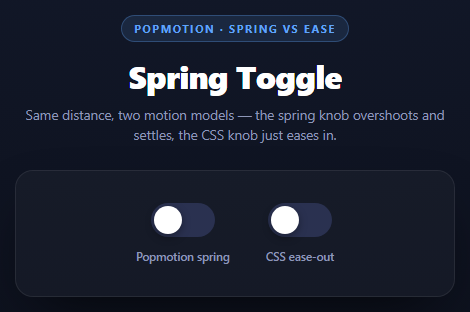

Screenshot of the Popmotion Spring Toggle Switch snippet rendered live

Put a spring-animated toggle next to a CSS transition: ease-out toggle and the difference is immediately visible, even though both move the knob the same 30px. The spring knob overshoots slightly past its target and wobbles back before settling; the CSS knob glides in and simply stops. That difference isn't cosmetic — it comes from two fundamentally different models of motion.

A CSS transition is a position-over-time curve

transition: transform .28s ease-out works by sampling a fixed easing function — a cubic Bézier curve, in this case one that starts fast and decelerates — at every point between 0% and 100% of a fixed duration. Position at any moment is purely a function of *elapsed time*. It has no concept of velocity, momentum, or how the animation was triggered. Because the curve is defined to go from 0 to 1 and never above 1, the knob can never overshoot its target — it approaches asymptotically and stops. This is deterministic and cheap, which is exactly why CSS transitions are the right default for most UI motion.

A spring is a physics simulation, not a curve

popmotion.animate({ type: 'spring', stiffness: 380, damping: 12, mass: 1, from: springX, to: on ? TRAVEL : 0 }) works completely differently. Every frame, Popmotion numerically integrates the equations of a mass-spring-damper system:

- stiffness is the spring constant — how hard it pulls the knob toward the target. - damping is the resistance that opposes velocity — how much energy is removed each step. - mass is the simulated inertia of the moving object.

With stiffness: 380 and a comparatively low damping: 12, the spring is underdamped: it doesn't have enough resistance to stop exactly at the target on the first pass. Like a real spring, it overshoots, reverses, and oscillates with decreasing amplitude until it settles — you can see this as the knob briefly passing 30px before easing back. Position here is a function of the *current simulated velocity and force*, not of elapsed time, which is precisely why the same 30px travel produces visibly different motion: the spring onUpdate gets called every frame with a value derived from ongoing physics, not a lookup on a fixed curve.

Why interruption behaves differently too

Click the spring toggle rapidly and setSpring() calls springAnim.stop() before starting a new spring from the current springX — the *current position*, not the previous target. Because the spring model is driven by position and (implicitly) the velocity it's still carrying, restarting it from mid-motion looks continuous; the new spring just has a different effective starting energy. A CSS transition retargeted mid-flight also restarts from its current computed position, but since it has no velocity to preserve, the direction change looks comparatively mechanical — it has no "memory" of how fast it was moving.

Tuning the feel

Raise damping toward stiffness and the oscillation shrinks — at damping: 2 * sqrt(stiffness * mass) (critical damping) the spring approaches the target with no overshoot at all, converging on the same visual result as an ease curve, just via different math. Lower stiffness and the whole motion slows down and feels heavier.

Reusing it

Any toggle, checkbox, or draggable handle benefits from a spring when you want it to feel touched by a real force rather than mechanically eased. Pair it with a Popmotion Drag Inertia Card to see the same spring model used for an out-of-bounds correction instead of a toggle.

Step by step

How to Use

  1. 1
    Add the Popmotion CDNInclude the popmotion UMD build for the global popmotion.animate function.
  2. 2
    Paste HTML, CSS, and JSTwo toggle switches render side by side — one spring, one CSS ease.
  3. 3
    Click the spring togglepopmotion.animate({ type: "spring" }) drives the knob with visible overshoot and settle.
  4. 4
    Click the CSS toggleA plain transition eases the knob to its target with no overshoot, for comparison.
  5. 5
    Toggle rapidlyNotice the spring restarts smoothly from its current position; the CSS toggle reverses more mechanically.
  6. 6
    Tune stiffness/dampingRaise damping toward stiffness to remove the overshoot; lower stiffness for a slower, heavier feel.

Real-world uses

Common Use Cases

Settings toggles
Any on/off switch that should feel tactile rather than mechanically eased.
Physical-feeling UI kits
Design systems that want spring motion as their default interactive feedback.
Teaching animation models
A direct, visual explanation of spring vs duration-based easing for onboarding new developers.
Motion design prototyping
Quickly A/B a spring feel against a standard ease before committing to one in production.
Mobile-style controls
Toggle switches matching the bouncy feel of native iOS/Android UI kits.
Reusable spring primitive
A pattern to lift into drag handles, modals, or any UI element that should feel physical.

Got questions?

Frequently Asked Questions

The spring is a physics simulation: with low damping relative to stiffness it is underdamped, meaning the simulated spring has enough energy to carry the knob past the target before the damping force pulls it back. A CSS transition is a position-over-time curve normalized between 0 and 1 -- it has no velocity or energy concept, so it can only approach the target asymptotically and stop, never exceed it.

stiffness is how strongly the spring pulls toward the target -- higher means faster, snappier motion. damping is the resistance that removes energy from the system each frame -- higher damping reduces or eliminates overshoot. mass is the simulated inertia of the moving object -- higher mass makes the same stiffness/damping feel slower and heavier, since more force is needed to accelerate it.

Set damping to (or above) the critical damping value, roughly 2 * Math.sqrt(stiffness * mass). At that point the system is critically or over-damped and approaches the target without oscillating, similar in shape to an ease-out curve but still computed from physics rather than a fixed curve.

The spring restarts from from: springX, its actual current position, each time setSpring() runs, and the simulation continues integrating forces from there. The CSS transition also restarts from its current computed position, but because it carries no velocity information into the reversed curve, the direction change reads more abruptly -- there is no simulated momentum to carry through the reversal.

No -- a spring animation has no duration parameter at all. It runs until the simulated velocity and displacement from the target both fall under Popmotion's rest thresholds, at which point it calls onComplete and stops. How long that takes falls out of the stiffness/damping/mass values rather than being specified directly.

Keep the animation instance and current value in a ref, start/stop it in a click handler exactly as this snippet does, and write to a DOM ref's style.transform inside onUpdate rather than to component state -- updating React/Vue state on every animation frame would cause a re-render per frame, which is unnecessary since the animation only needs to touch the DOM directly.
