Scroll-Scrubbed GLB Turntable — Free GSAP ScrollTrigger + Three.js glTF Snippet

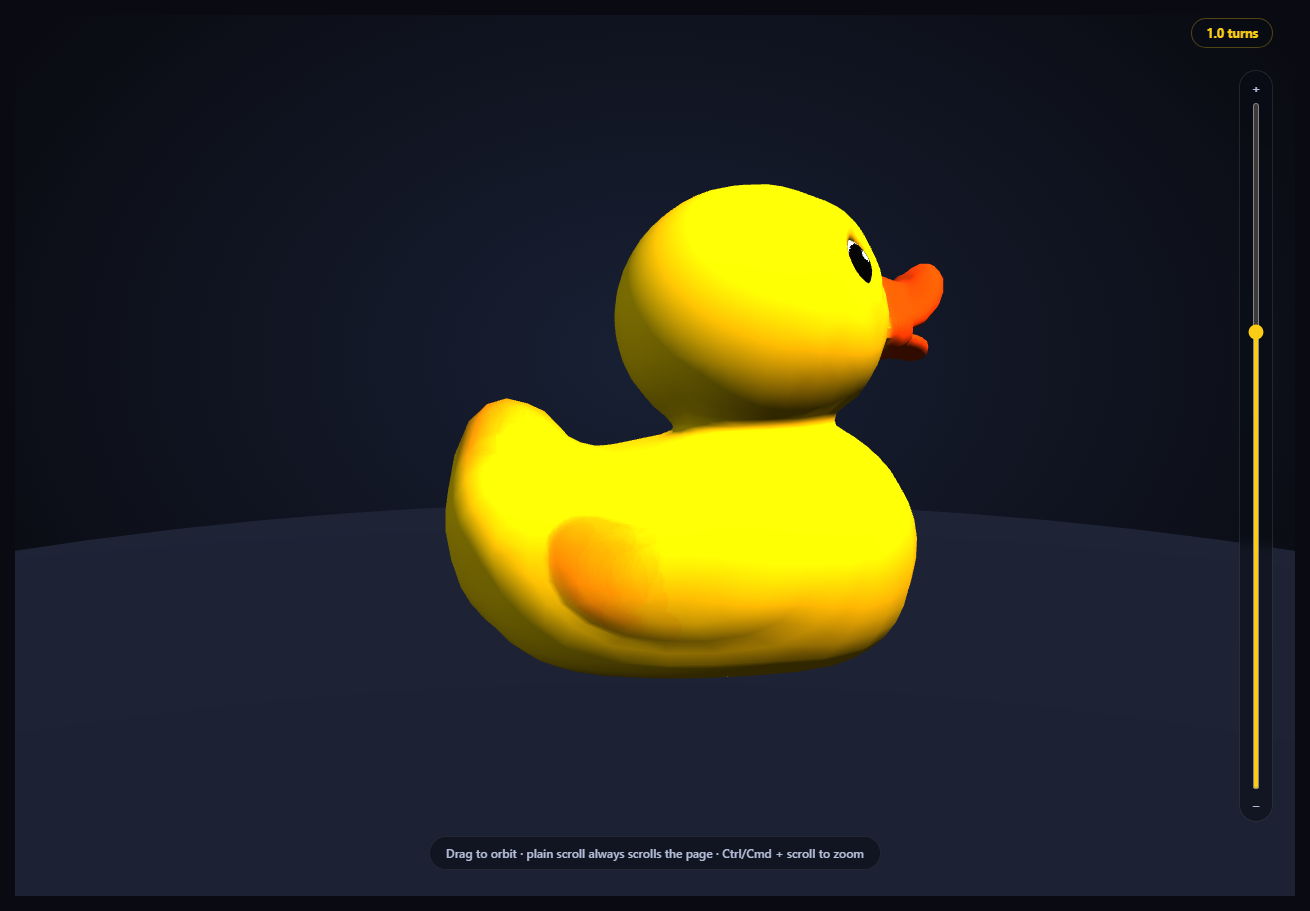

<section class="gts-intro"><h1>Scroll to spin a real glTF model</h1><p>The duck's rotation is scrubbed directly by scroll position — and you can grab it and orbit the camera yourself at any moment.</p></section>
<section class="gts-pin" id="gtsPin">
  <canvas id="gtsCanvas"></canvas>
  <div class="gts-hint" id="gtsHint">Drag to orbit · plain scroll always scrolls the page · Ctrl/Cmd + scroll to zoom</div>
  <div class="gts-turns" id="gtsTurns">0.0 turns</div>
  <div class="gts-zoom">
    <span class="gts-zoom-label">+</span>
    <input type="range" id="gtsZoom" class="gts-zoom-slider" min="0" max="100" step="1" />
    <span class="gts-zoom-label">&minus;</span>
  </div>
</section>
<section class="gts-outro"><p>Two full turns, entirely driven by scroll — try scrolling back up.</p></section>

*{box-sizing:border-box;margin:0;padding:0}
body{font-family:system-ui,-apple-system,sans-serif;color:#fff;background:#0a0b12}
.gts-intro,.gts-outro{min-height:70vh;display:flex;flex-direction:column;justify-content:center;align-items:center;text-align:center;gap:10px;padding:24px}
.gts-intro h1{font-size:clamp(28px,6vw,50px);letter-spacing:-.02em}
.gts-intro p,.gts-outro p{color:#9aa0b8;font-size:15px;max-width:440px}
.gts-pin{position:relative;height:100vh;overflow:hidden;background:radial-gradient(60% 60% at 50% 40%,#182034,#0a0b12)}
#gtsCanvas{display:block;width:100%;height:100%;cursor:grab}
#gtsCanvas:active{cursor:grabbing}
.gts-hint{position:absolute;left:50%;bottom:26px;transform:translateX(-50%);font-size:12px;font-weight:600;color:#b7c0da;background:rgba(10,12,20,.55);padding:8px 16px;border-radius:999px;backdrop-filter:blur(6px);border:1px solid rgba(255,255,255,.08)}
.gts-turns{position:absolute;top:22px;right:22px;font-size:12.5px;font-weight:700;color:#facc15;background:rgba(10,12,20,.55);padding:6px 14px;border-radius:999px;border:1px solid rgba(250,204,21,.3);font-variant-numeric:tabular-nums}
.gts-zoom{position:absolute;right:22px;top:74px;bottom:74px;width:34px;display:flex;flex-direction:column;align-items:center;gap:8px;background:rgba(10,12,20,.55);border:1px solid rgba(255,255,255,.1);border-radius:999px;padding:10px 0;backdrop-filter:blur(6px)}
.gts-zoom-label{font-size:13px;font-weight:700;color:#b7c0da;line-height:1;user-select:none}
.gts-zoom-slider{flex:1;width:6px;-webkit-appearance:slider-vertical;writing-mode:vertical-lr;direction:rtl;accent-color:#facc15;cursor:pointer}

gsap.registerPlugin(ScrollTrigger);

const canvas = document.getElementById('gtsCanvas');
const turnsLabel = document.getElementById('gtsTurns');
const renderer = new THREE.WebGLRenderer({ canvas, antialias: true, alpha: true });
renderer.setPixelRatio(Math.min(window.devicePixelRatio, 2));

const scene = new THREE.Scene();
const camera = new THREE.PerspectiveCamera(40, 1, 0.1, 50);
camera.position.set(0, 0.4, 4.4);

// OrbitControls moves the CAMERA around the scene; scroll below will spin
// the MODEL itself. Those are two independent transforms — a camera-space
// rotation and an object-space rotation — so dragging to orbit and
// scrolling to spin never have to fight over who owns "rotation." Both
// happen at once with zero conflict-resolution code required.
const controls = new THREE.OrbitControls(camera, renderer.domElement);
controls.enableDamping = true;
controls.dampingFactor = 0.08;
controls.minDistance = 2.2;
controls.maxDistance = 9;
controls.target.set(0, 0, 0);

// OrbitControls' own wheel-zoom is turned off on purpose: left on, it calls
// preventDefault() on every wheel event over the canvas — including a plain
// scroll — which would silently swallow the page scroll this whole demo
// depends on. Zoom is reimplemented below as an explicit, opt-in gesture
// (a slider, and Ctrl/Cmd + scroll) instead of hijacking the default wheel.
controls.enableZoom = false;

const zoomSlider = document.getElementById('gtsZoom');

function setZoomDistance(distance) {
  const clamped = THREE.MathUtils.clamp(distance, controls.minDistance, controls.maxDistance);
  const offset = camera.position.clone().sub(controls.target);
  offset.setLength(clamped || 0.001);
  camera.position.copy(controls.target).add(offset);
  const t = (clamped - controls.minDistance) / (controls.maxDistance - controls.minDistance);
  zoomSlider.value = String(Math.round((1 - t) * 100));
}

setZoomDistance(camera.position.distanceTo(controls.target));

zoomSlider.addEventListener('input', () => {
  const t = 1 - Number(zoomSlider.value) / 100;
  setZoomDistance(controls.minDistance + t * (controls.maxDistance - controls.minDistance));
});

canvas.addEventListener('wheel', (e) => {
  if (!e.ctrlKey && !e.metaKey) return; // plain scroll always passes through to the page
  e.preventDefault();
  const current = camera.position.distanceTo(controls.target);
  setZoomDistance(current + e.deltaY * 0.01);
}, { passive: false });

scene.add(new THREE.AmbientLight(0x445066, 0.7));
const key = new THREE.DirectionalLight(0xffffff, 1.5);
key.position.set(4, 6, 5);
scene.add(key);
const fill = new THREE.DirectionalLight(0x93c5fd, 0.5);
fill.position.set(-5, 2, 3);
scene.add(fill);

const ground = new THREE.Mesh(
  new THREE.CircleGeometry(4, 48),
  new THREE.MeshStandardMaterial({ color: 0x11141f, roughness: 1 })
);
ground.rotation.x = -Math.PI / 2;
ground.position.y = -0.75;
scene.add(ground);

// The model that scroll will spin. Loaded once; everything below reacts
// to it existing (or not) via this mutable reference.
let duck = null;

// A real, freely-licensed sample .glb from Khronos' official glTF sample
// asset repository, served from its GitHub repo via the jsdelivr CDN — no
// hosting of a binary asset required, and it's the same file used across
// countless real Three.js GLTFLoader tutorials and demos.
const MODEL_URL = 'https://cdn.jsdelivr.net/gh/KhronosGroup/glTF-Sample-Assets@main/Models/Duck/glTF-Binary/Duck.glb';

const loader = new THREE.GLTFLoader();
loader.load(
  MODEL_URL,
  (gltf) => {
    duck = gltf.scene;
    // Auto-fit rather than a hardcoded scale factor: different .glb exports
    // (and loader versions) can decode the same source asset at wildly
    // different raw sizes, so measuring the loaded geometry and scaling it
    // to a known target height is far more reliable than guessing a magic
    // number ahead of time.
    const box = new THREE.Box3().setFromObject(duck);
    const size = box.getSize(new THREE.Vector3());
    const maxDim = Math.max(size.x, size.y, size.z) || 1;
    duck.scale.setScalar(1.8 / maxDim);
    const fitted = new THREE.Box3().setFromObject(duck);
    duck.position.y += -0.75 - fitted.min.y; // rest its base on the ground disc
    scene.add(duck);
  },
  undefined,
  (err) => {
    // Honest failure state: if the CDN model can't load (offline preview,
    // network block), swap in a simple placeholder so the scene is never
    // just an empty void with silent console noise.
    console.error('GLB failed to load, showing a placeholder instead:', err);
    const placeholder = new THREE.Mesh(
      new THREE.SphereGeometry(0.9, 32, 32),
      new THREE.MeshStandardMaterial({ color: 0xfacc15, roughness: 0.5 })
    );
    placeholder.position.y = -0.1;
    duck = placeholder;
    scene.add(placeholder);
  }
);

// Scroll drives the model's own Y rotation directly from scroll progress —
// TWO full turns (4*PI radians) across the pinned scroll distance, scrubbed
// (not animated on a timer), so scrolling back up spins it back exactly.
const TOTAL_TURNS = 2;

ScrollTrigger.create({
  trigger: '#gtsPin',
  start: 'top top',
  end: '+=2600',
  pin: true,
  scrub: 0.4,
  onUpdate(self) {
    if (!duck) return;
    duck.rotation.y = self.progress * Math.PI * 2 * TOTAL_TURNS;
    turnsLabel.textContent = (self.progress * TOTAL_TURNS).toFixed(1) + ' turns';
  },
});

function resize() {
  const w = canvas.clientWidth, h = canvas.clientHeight;
  renderer.setSize(w, h, false);
  camera.aspect = w / h;
  camera.updateProjectionMatrix();
}

function animate() {
  requestAnimationFrame(animate);
  controls.update();
  renderer.render(scene, camera);
}

resize();
window.addEventListener('resize', resize);
animate();
