Multi-Step Progress Wizard — HTML CSS JS Snippet

Multi-Step Progress Wizard · Navigation · Plain HTML, CSS & JS · Live preview

CategoryNavigation
TagsSVGCSS AnimationLoading StatesOnboardingCSS Grid

Copy & paste

Source Code

<div class="wizard-wrap">
  <div class="wizard">
    <div class="wizard-header">
      <h2 class="wizard-title">Create Your Account</h2>
      <p class="wizard-sub">Complete all steps to get started</p>
    </div>

    <!-- Step indicator -->
    <div class="steps" id="stepsEl">
      <div class="step active" data-step="1">
        <div class="step-circle">
          <svg class="step-icon" width="14" height="14" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="2.5" stroke-linecap="round"><path d="M20 21v-2a4 4 0 0 0-4-4H8a4 4 0 0 0-4 4v2"/><circle cx="12" cy="7" r="4"/></svg>
          <svg class="check-icon" width="14" height="14" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="2.5" stroke-linecap="round"><polyline points="20 6 9 17 4 12"/></svg>
        </div>
        <div class="step-info">
          <div class="step-label">Profile</div>
          <div class="step-desc">Personal info</div>
        </div>
      </div>
      <div class="step-line"><div class="step-line-fill" id="line1"></div></div>
      <div class="step" data-step="2">
        <div class="step-circle">
          <svg class="step-icon" width="14" height="14" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="2.5" stroke-linecap="round"><rect x="3" y="11" width="18" height="11" rx="2"/><path d="M7 11V7a5 5 0 0 1 10 0v4"/></svg>
          <svg class="check-icon" width="14" height="14" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="2.5" stroke-linecap="round"><polyline points="20 6 9 17 4 12"/></svg>
        </div>
        <div class="step-info">
          <div class="step-label">Security</div>
          <div class="step-desc">Set password</div>
        </div>
      </div>
      <div class="step-line"><div class="step-line-fill" id="line2"></div></div>
      <div class="step" data-step="3">
        <div class="step-circle">
          <svg class="step-icon" width="14" height="14" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="2.5" stroke-linecap="round"><rect x="2" y="3" width="20" height="14" rx="2"/><path d="M8 21h8M12 17v4"/></svg>
          <svg class="check-icon" width="14" height="14" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="2.5" stroke-linecap="round"><polyline points="20 6 9 17 4 12"/></svg>
        </div>
        <div class="step-info">
          <div class="step-label">Plan</div>
          <div class="step-desc">Choose tier</div>
        </div>
      </div>
      <div class="step-line"><div class="step-line-fill" id="line3"></div></div>
      <div class="step" data-step="4">
        <div class="step-circle">
          <svg class="step-icon" width="14" height="14" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="2.5" stroke-linecap="round"><polyline points="20 6 9 17 4 12"/></svg>
          <svg class="check-icon" width="14" height="14" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="2.5" stroke-linecap="round"><polyline points="20 6 9 17 4 12"/></svg>
        </div>
        <div class="step-info">
          <div class="step-label">Done</div>
          <div class="step-desc">All set!</div>
        </div>
      </div>
    </div>

    <!-- Panels -->
    <div class="panels">
      <div class="panel active" id="panel1">
        <h3 class="panel-title">Personal Information</h3>
        <div class="field-row">
          <div class="field"><label>First name</label><input type="text" placeholder="Alex" value="Alex"></div>
          <div class="field"><label>Last name</label><input type="text" placeholder="Morgan" value="Morgan"></div>
        </div>
        <div class="field"><label>Email address</label><input type="email" placeholder="[email protected]" value="[email protected]"></div>
        <div class="field"><label>Job title</label><input type="text" placeholder="Software Engineer" value="Software Engineer"></div>
      </div>

      <div class="panel" id="panel2">
        <h3 class="panel-title">Set Your Password</h3>
        <div class="field"><label>Password</label><input type="password" placeholder="Min. 8 characters" value="••••••••••"></div>
        <div class="field"><label>Confirm password</label><input type="password" placeholder="Repeat password" value="••••••••••"></div>
        <div class="strength-row">
          <div class="strength-bars">
            <div class="sbar filled"></div><div class="sbar filled"></div><div class="sbar filled"></div><div class="sbar"></div>
          </div>
          <span class="strength-label">Strong</span>
        </div>
        <label class="checkbox-row"><input type="checkbox" checked> Enable two-factor authentication</label>
      </div>

      <div class="panel" id="panel3">
        <h3 class="panel-title">Choose Your Plan</h3>
        <div class="plan-cards">
          <label class="plan-card"><input type="radio" name="plan" value="free" checked><div class="plan-body"><div class="plan-name">Free</div><div class="plan-price">$0/mo</div><div class="plan-feat">3 projects · 1GB storage</div></div></label>
          <label class="plan-card selected"><input type="radio" name="plan" value="pro"><div class="plan-body"><div class="plan-name">Pro <span class="pop-badge">Popular</span></div><div class="plan-price">$12/mo</div><div class="plan-feat">Unlimited projects · 50GB</div></div></label>
          <label class="plan-card"><input type="radio" name="plan" value="team"><div class="plan-body"><div class="plan-name">Team</div><div class="plan-price">$39/mo</div><div class="plan-feat">5 seats · 200GB storage</div></div></label>
        </div>
      </div>

      <div class="panel" id="panel4">
        <div class="success-state">
          <div class="success-ring">
            <svg width="32" height="32" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="2.5" stroke-linecap="round"><polyline points="20 6 9 17 4 12"/></svg>
          </div>
          <h3 class="success-title">Account Created!</h3>
          <p class="success-sub">Welcome aboard, Alex. Your account is ready. Check your inbox for a confirmation email.</p>
          <div class="summary-pills">
            <span class="pill">Alex Morgan</span>
            <span class="pill">[email protected]</span>
            <span class="pill pill-pro">Pro Plan</span>
          </div>
        </div>
      </div>
    </div>

    <!-- Footer nav -->
    <div class="wizard-footer">
      <button class="btn-back" id="btnBack" onclick="prevStep()" disabled>
        <svg width="14" height="14" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="2.5" stroke-linecap="round"><polyline points="15 18 9 12 15 6"/></svg>
        Back
      </button>
      <span class="step-count" id="stepCount">Step 1 of 4</span>
      <button class="btn-next" id="btnNext" onclick="nextStep()">
        Next
        <svg width="14" height="14" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="2.5" stroke-linecap="round"><polyline points="9 18 15 12 9 6"/></svg>
      </button>
    </div>
  </div>
</div>

Extend with AI

Take This Snippet Further With AI

The AI prompt for this one is for Patreon supporters ($3 a month, 7 days free), along with a site with no ads. Supporters enter the passcode once and it is remembered in this browser.

· Become a supporter

What's included

Features

Animated connector line fill between steps
Icon-to-checkmark swap on completed steps using CSS only
Panel slide-in animation on step change
Plan selector using: has() CSS with JS fallback
Back/Next button state derived from single integer
Next button label changes to "Finish" on last step
Success panel with spring-easing pop animation
Zero dependencies — pure HTML, CSS, JavaScript

About this UI Snippet

Multi-Step Progress Wizard — Animated Step Indicator, Connector Fill & Plan Selector

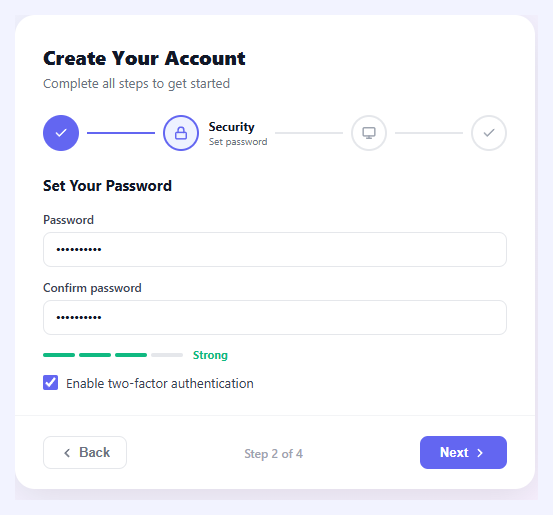

Screenshot of the Multi-Step Progress Wizard snippet rendered live

A multi-step wizard breaks a long form into smaller, focused stages that feel manageable. Each step shows one logical group of fields — personal info, security, plan selection, confirmation — and a persistent progress indicator at the top communicates how far along the user is. Research consistently shows that multi-step forms have higher completion rates than long single-page forms because the cognitive load per screen is lower and progress feels visible and achievable.

Step indicator architecture

The step indicator is a horizontal flex row: four .step elements separated by .step-line spacers. Each step contains a circle icon and a label; only the active step shows its label text (via display:none on .step-info and display:block on .step.active .step-info). This keeps the indicator compact on small screens while showing helpful context on the active step.

Connector line fill animation

Each .step-line has a child .step-line-fill div. When a step is completed, JavaScript sets fill.style.width = '100%'. Because the CSS defines transition: width 0.4s ease on the fill, the line smoothly grows from left to right — visually "unlocking" the path to the next step. This technique requires no canvas or SVG — just a block div inside an overflow:hidden container.

Done state: swap icon via CSS

Completed steps show a checkmark instead of their original icon. This is achieved with two sibling SVGs: .step-icon (the step's purpose icon) and .check-icon (a checkmark). By default .check-icon is display:none. When the parent gets the .done class, CSS rules flip them: .step.done .step-icon { display:none } and .step.done .check-icon { display:block }. No DOM manipulation required — the icons are always in the HTML, CSS controls which is visible.

Panel transitions

Each form section is a .panel div; only the one with .active has display:block. A CSS @keyframes fadeIn animation on .panel.active slides the panel in from 12px to the right with an opacity fade over 250ms, giving a sense of forward motion when advancing steps. Going backwards could use a mirrored animation (translateX from -12px) which you can add by swapping the class on the panel before setting active.

Plan selector with :has() CSS

The plan selection uses <label> wrappers containing a hidden radio input. .plan-card:has(input:checked) applies the selected border and background when the radio inside is checked — pure CSS selection state with no JavaScript listener. A JavaScript click handler also syncs a .selected class for browsers that don't support :has() yet, providing a robust progressive enhancement approach.

JavaScript state machine

The current integer tracks the active step (1–4). updateWizard() is a pure render function: it iterates 1–TOTAL, assigns active/done/neutral classes to each step, activates the matching panel, and sets line fill widths. Both nextStep() and prevStep() simply increment/decrement current then call updateWizard(). This single-state-variable + pure-render pattern maps directly to React's useState hook.

Success state animation

The final panel shows a green ring with a checkmark that scales in from 0 using @keyframes pop with a spring cubic-bezier (0.175, 0.885, 0.32, 1.275). This overshoot easing is the same used in iOS confirmation animations — it makes the success feel earned and satisfying.

Button state management

The Back button has the HTML disabled attribute toggled by btnBack.disabled = current === 1. The Next button's label changes to "Finish" with a checkmark icon when on the penultimate step, and the button is disabled on the last step. All visual states flow from the single current integer — no scattered class toggles.

React integration

Use useState(1) for the current step. Wrap each panel in a component: <ProfileStep />, <SecurityStep />, <PlanStep />, <SuccessStep />. Render only the active component. The step indicator maps over a STEPS config array to render circles and labels. Pass onNext and onBack callbacks down to each step component, or manage navigation in the parent wizard component.

Accessibility

The step indicator should use role="list" on the steps container and role="listitem" on each step. The active step should have aria-current="step". The panels should use aria-live="polite" so screen readers announce the new panel content when it appears. Disabled buttons already communicate their state via the HTML disabled attribute.

See also the stepper snippet for a simpler number-based indicator, the multi-step form snippet for a form-focused variant, and the circular steps snippet for a radial progress design.

Step by step

How to Use

  1. 1
    Copy the full HTML structureThe wizard needs all four .panel divs and the .steps indicator in the same container. Do not separate them — the JS targets all elements by ID.
  2. 2
    Adjust step countTo add or remove steps: add/remove .step and .step-line elements in .steps, add/remove .panel divs, and update the TOTAL constant in the JS.
  3. 3
    Add the CSS and JSPaste both blocks. The JS updateWizard() function is the single source of truth — it derives all visual state from the current integer variable.
  4. 4
    Customise panel contentReplace the content inside each .panel with your own form fields. The wizard navigation works independently of what is inside each panel.
  5. 5
    Add validation before advancingIn nextStep(), add a validation check before incrementing current. Return early if validation fails, and show an error message inside the current panel.

Real-world uses

Common Use Cases

👤
Signup onboarding
Create a multi-step account flow with profile, security and plan steps, with an animated connector filling between completed steps.
⚙️
Product setup wizards
Split a SaaS configuration into manageable stages, with icons turning into checkmarks on completed steps through CSS only.
🛒
Checkout flows
Divide an e-commerce checkout into cart, shipping and payment, with panels sliding in when the step changes.
📝
Intake and survey forms
Break long forms into sections to improve completion, using a plan selector built with :has() and a JavaScript fallback.
Related: Sticky Product Bar
See the Sticky Product Bar for a related navigation pattern worth pairing with this one.

Got questions?

Frequently Asked Questions

Use useState(1) for current step. Map a STEPS config array to render the indicator. Render only the active panel component. Pass onNext/onBack as props or use a context.

In nextStep(), run your validation logic first. If it fails, show an error inside the current panel and return early without incrementing current.

Add an onclick to each .step that calls goToStep(n). Only allow jumping to completed steps (where i < current) to prevent skipping required fields.

Track a direction variable (next/prev). In fadeIn keyframe, use translateX(12px) for forward. Add a fadeInBack animation with translateX(-12px) and apply it when direction is prev.

Open the Export menu (or the Test Exports preview) in the snippet toolbar. It generates a plain React component, a React + Tailwind version where the step-indicator and panel styles become utility classes, a Vue 3 single-file component with the step navigation in script setup, and an Angular standalone component. Each converter preserves the markup, the connector-fill animation, and the panel transitions, so the wizard behaves identically across React, Vue, and Angular. Hold the current step and form values in component state and pass the plan options in as a prop or input instead of hardcoding the panels.

Yes. While the Multi-Step Progress Wizard snippet gives you one pattern to copy, the free Responsive Navbar Builder at webdevpuneet.com/navbar-builder/ designs a whole navigation bar: logo, links and dropdown menus, a mobile hamburger menu (dropdown panel, slide-in drawer or full screen) and a scroll effect (sticky, shrink, hide on scroll or transparent). It has six presets, a live preview that runs the real code, and exports HTML + CSS + vanilla JS, React, Tailwind, Vue 3 or Angular — or you can click Fork & Edit to keep editing it in My Code.
