Bottom Sheet — Free HTML CSS JS Mobile Snippet

Bottom Sheet · Modals · Plain HTML, CSS & JS · Live preview

CategoryModals
TagsClipboard APIKeyboard NavigationSVGAccessibilityMobile UI

Copy & paste

Source Code

<div class="app">
  <div class="screen-content">
    <h2 class="page-title">Bottom Sheet</h2>
    <p class="page-sub">Mobile-style slide-up sheet with drag handle, backdrop, and snap close.</p>

    <div class="btns">
      <button class="trigger-btn" onclick="openSheet('share')">Share options</button>
      <button class="trigger-btn outline" onclick="openSheet('filter')">Filter results</button>
    </div>
  </div>

  <!-- Backdrop -->
  <div class="backdrop" id="backdrop" onclick="closeSheet()"></div>

  <!-- Sheet -->
  <div class="sheet" id="sheet" role="dialog" aria-modal="true">
    <div class="drag-handle"></div>

    <div class="sheet-content" id="sheet-content">
      <!-- Share content -->
      <div class="sc" id="sc-share">
        <h3 class="sheet-title">Share this page</h3>
        <div class="action-grid">
          <button class="action-item" onclick="closeSheet()">
            <div class="action-icon" style="background:#0ea5e9">
              <svg width="18" height="18" viewBox="0 0 24 24" fill="none" stroke="#fff" stroke-width="2.2" stroke-linecap="round"><path d="M23 3a10.9 10.9 0 0 1-3.14 1.53 4.48 4.48 0 0 0-7.86 3v1A10.66 10.66 0 0 1 3 4s-4 9 5 13a11.64 11.64 0 0 1-7 2c9 5 20 0 20-11.5a4.5 4.5 0 0 0-.08-.83A7.72 7.72 0 0 0 23 3z"/></svg>
            </div>
            <span>Twitter</span>
          </button>
          <button class="action-item" onclick="closeSheet()">
            <div class="action-icon" style="background:#3b5998">
              <svg width="18" height="18" viewBox="0 0 24 24" fill="#fff"><path d="M18 2h-3a5 5 0 0 0-5 5v3H7v4h3v8h4v-8h3l1-4h-4V7a1 1 0 0 1 1-1h3z"/></svg>
            </div>
            <span>Facebook</span>
          </button>
          <button class="action-item" onclick="closeSheet()">
            <div class="action-icon" style="background:#25d366">
              <svg width="18" height="18" viewBox="0 0 24 24" fill="#fff"><path d="M21 11.5a8.38 8.38 0 0 1-.9 3.8 8.5 8.5 0 0 1-7.6 4.7 8.38 8.38 0 0 1-3.8-.9L3 21l1.9-5.7a8.38 8.38 0 0 1-.9-3.8 8.5 8.5 0 0 1 4.7-7.6 8.38 8.38 0 0 1 3.8-.9h.5a8.48 8.48 0 0 1 8 8v.5z"/></svg>
            </div>
            <span>WhatsApp</span>
          </button>
          <button class="action-item" onclick="copyLink()">
            <div class="action-icon" style="background:#6366f1">
              <svg width="18" height="18" viewBox="0 0 24 24" fill="none" stroke="#fff" stroke-width="2.2" stroke-linecap="round"><path d="M10 13a5 5 0 0 0 7.54.54l3-3a5 5 0 0 0-7.07-7.07l-1.72 1.71"/><path d="M14 11a5 5 0 0 0-7.54-.54l-3 3a5 5 0 0 0 7.07 7.07l1.71-1.71"/></svg>
            </div>
            <span id="copy-label">Copy link</span>
          </button>
        </div>
      </div>

      <!-- Filter content -->
      <div class="sc" id="sc-filter" style="display:none">
        <h3 class="sheet-title">Filter results</h3>
        <div class="filter-group">
          <div class="filter-label">Price range</div>
          <div class="filter-chips">
            <button class="chip active" onclick="toggleChip(this)">Any</button>
            <button class="chip" onclick="toggleChip(this)">Under $50</button>
            <button class="chip" onclick="toggleChip(this)">$50–$200</button>
            <button class="chip" onclick="toggleChip(this)">$200+</button>
          </div>
        </div>
        <div class="filter-group">
          <div class="filter-label">Rating</div>
          <div class="filter-chips">
            <button class="chip active" onclick="toggleChip(this)">Any</button>
            <button class="chip" onclick="toggleChip(this)">4★ &amp; up</button>
            <button class="chip" onclick="toggleChip(this)">5★ only</button>
          </div>
        </div>
        <div class="filter-actions">
          <button class="filter-reset" onclick="closeSheet()">Reset</button>
          <button class="filter-apply" onclick="closeSheet()">Apply filters</button>
        </div>
      </div>
    </div>
  </div>
</div>

Extend with AI

Take This Snippet Further With AI

The AI prompt for this one is for Patreon supporters ($3 a month), along with a site with no ads. Supporters enter the passcode once and it is remembered in this browser.

· Become a supporter

What's included

Features

Slide-up via translateY(100%)→translateY(0) with cubic-bezier(0.32,0.72,0,1) spring curve
Backdrop: rgba fade from transparent to 0.4 black in sync with sheet open
Drag handle: 40×4px pill visual indicator at sheet top
Two content variants: share action grid and filter chip groups
Share actions: 4-column icon grid with Clipboard API copy link feedback
Filter chips: single-select within group via toggleChip() active class management
ESC keydown close: listener added on open, removed on close (no memory leak)
Max-width: 600px centred on desktop, full-width on mobile
ESC close, backdrop click close, button close — three dismiss patterns

About this UI Snippet

Bottom Sheet — Slide-Up Mobile Panel, Drag Handle, Backdrop & Share/Filter Content Variants

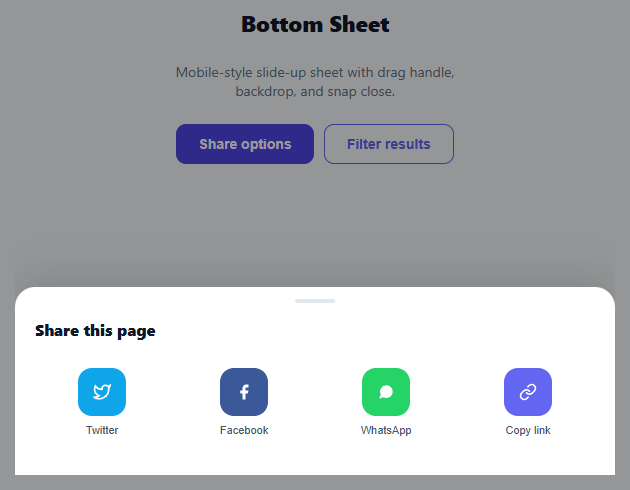

Screenshot of the Bottom Sheet snippet rendered live

A bottom sheet is a mobile-first UI pattern where a panel slides up from the bottom edge of the screen to present options, actions, or secondary content without navigating away from the current page. It is the mobile equivalent of a modal or popover — less disruptive than a full-screen overlay, more prominent than a tooltip. This snippet provides a complete bottom sheet with backdrop, a drag handle, ESC-to-close, two content variants (share actions and filter chips), and a smooth cubic-bezier slide animation.

The slide animation

The sheet starts at transform: translateY(100%) — fully below the viewport. Adding .open changes it to translateY(0). The transition uses cubic-bezier(0.32, 0.72, 0, 1) — a spring-like curve that accelerates sharply then decelerates slowly, mimicking iOS sheet physics. The same animation reverses on close. The backdrop fades from rgba(0,0,0,0) to rgba(0,0,0,0.4) in sync.

The drag handle

The 40×4px pill at the top of the sheet is a universal visual signal that the panel is draggable. This snippet shows the visual handle without drag-to-dismiss JavaScript — add touchmove/touchend listeners to implement drag-to-dismiss where the sheet follows the finger and closes if dragged more than 40% of its height.

Two content variants

Clicking "Share options" shows a 4-column action grid (Twitter, Facebook, WhatsApp, Copy link) with coloured icon blocks. The copy link button uses the Clipboard API and shows a "✓ Copied!" feedback state. Clicking "Filter results" shows a filter sheet with price range and rating chip groups — toggleChip() manages single-selection within each group.

ESC key and backdrop close

The keydown listener (added on open, removed on close) closes the sheet on Escape. The backdrop div has onclick="closeSheet()" directly. Both patterns are identical to the modal close mechanisms.

Max-width centering

On desktop, the sheet has max-width: 600px and margin: 0 auto so it does not stretch edge-to-edge. On mobile, it fills the full viewport width. The border-radius: 20px 20px 0 0 gives the characteristic rounded top corners of a native mobile sheet.

When to use a bottom sheet versus a modal

Use a bottom sheet when: the action is context-preserving (users can still see the page behind the backdrop), the content is secondary to the page (share options, filter settings, action menus), or the interaction is common on mobile native apps (iOS action sheets, Android bottom sheets). Use a standard modal when: the action requires full attention (delete confirmation, critical error, onboarding step), or the content is substantial (form, detail view, settings panel). The bottom sheet signals "quick action" to users through its position and size; the modal signals "stop and decide".

Step by step

How to Use

  1. 1
    Click the trigger buttons to open each sheet variantClick "Share options" to see the social action grid with copy link feedback. Click "Filter results" to see the chip-based filter sheet. Press ESC or click the backdrop to close.
  2. 2
    Add your own sheet contentCopy the .sc div structure and add a new id (e.g., sc-menu). In the HTML, add a new trigger button with onclick="openSheet('menu')". In the JS openSheet() function, add your new content type — the function shows/hides the matching .sc div automatically.
  3. 3
    Implement drag-to-dismissAdd touchstart to the .drag-handle: record startY = e.touches[0].clientY. In touchmove on the sheet: sheet.style.transform = "translateY("+Math.max(0,e.touches[0].clientY-startY)+"px)". In touchend: if dragged > 40% of sheet height, closeSheet(), else reset transform.
  4. 4
    Change the animation curveEdit cubic-bezier(0.32,0.72,0,1) on the .sheet transition to change the slide physics. Use ease-out for a simpler deceleration. Increase the 0.35s duration to 0.5s for a slower, more dramatic slide.
  5. 5
    Add more filter groupsDuplicate a .filter-group div inside sc-filter. Each group has a .filter-label and a .filter-chips row. The toggleChip() function manages active state within the parent .filter-chips container, so each group selects independently.
  6. 6
    Export in your formatClick "HTML" for a standalone file, "JSX" for a React component using useState for open state and content type, or "Tailwind" for a React + Tailwind CSS version.

Real-world uses

Common Use Cases

Mobile share sheets for social and copy-link actions
The share action grid (Twitter, Facebook, WhatsApp, copy link) is the universal mobile share pattern. Trigger from a share icon in a header or card. Wire each action button to the Web Share API (navigator.share()) if available, falling back to individual platform share URLs.
Filter and sort panels for listing and search result pages
The filter chip variant provides a mobile-optimised filter panel that slides up without leaving the results page. Trigger from a "Filter" button in the search bar. Apply filter state on the "Apply filters" button click and dismiss the sheet.
Action menus and context option sheets
Show a bottom sheet instead of a dropdown menu for mobile action menus — long-press on a list item, tap the three-dot menu icon, or tap a card footer action button. The sheet provides more space for action labels than a compact dropdown.
Settings and preferences panels on mobile web apps
Settings panels, notification preferences, and account actions translate naturally to a bottom sheet on mobile. Slide up from a "Settings" bottom nav tab and present a scrollable settings list inside the sheet.
Study the cubic-bezier spring animation and sheet pattern
The cubic-bezier(0.32,0.72,0,1) timing function is the iOS sheet physics approximation in CSS. Studying how the curve value creates the spring deceleration teaches the cubic-bezier coordinate system — values beyond [0,1] in the control points create overshoot effects.
Checkout and payment option sheets in e-commerce
Present payment method selection, delivery slot picker, or address chooser as a bottom sheet during checkout. The sheet stays in context — users see their cart or product behind the backdrop — reducing the mental load of navigating to a new page for each choice.
Related: Action Sheet
See the Action Sheet for a related modals pattern worth pairing with this one.
Related: Type-to-Confirm Delete Modal
See the Type-to-Confirm Delete Modal for a related modals pattern worth pairing with this one.
Related: What's New Changelog Modal
See the What's New Changelog Modal for a related modals pattern worth pairing with this one.
Related: Report Content Modal with Reason Picker
See the Report Content Modal with Reason Picker for a related modals pattern worth pairing with this one.

Got questions?

Frequently Asked Questions

CSS transition timing cubic-bezier(x1,y1,x2,x2) defines a Bezier curve between (0,0) and (1,1). The four values are the two control point coordinates. cubic-bezier(0.32, 0.72, 0, 1) places the first control point at (0.32, 0.72) — far right, high up — creating a very fast initial movement. The second control point (0, 1) — far left, at the top — creates a slow final approach. The result feels like a spring: fast start, gradual settle. This approximates the iOS UISheetPresentationController animation in CSS.

Add to the .sheet element: let startY = 0; sheet.addEventListener("touchstart", e => { startY = e.touches[0].clientY; }); sheet.addEventListener("touchmove", e => { const dy = e.touches[0].clientY - startY; if (dy > 0) { sheet.style.transition = "none"; sheet.style.transform = "translateY("+dy+"px)"; } }); sheet.addEventListener("touchend", e => { const dy = e.changedTouches[0].clientY - startY; sheet.style.transition = ""; if (dy > sheet.offsetHeight * 0.4) closeSheet(); else sheet.style.transform = ""; });

Add overflow-y: auto; max-height: 80vh to .sheet. Add overscroll-behavior: contain to prevent the scroll from propagating to the body behind the sheet (which would scroll the page). For a snap-to-size sheet that grows with content up to 80vh: set max-height: 80vh and let the content push the sheet height naturally. For a fixed-height sheet with internal scroll, set height: 60vh; overflow-y: auto.

Click "JSX" to download. Use useState(null) for the open content type — null means closed. Conditionally render the backdrop and sheet based on the state. Pass the content type as a prop to the Sheet component to control which content block renders. Add useEffect to manage the ESC key listener: attach when open state is not null, detach in the cleanup return. Use a portal (ReactDOM.createPortal) to render the sheet at document.body level to avoid z-index stacking context issues.
